Simple Linear Systems
Parallel PET felt baffles create a clean architectural ceiling structure with linear LED lighting positioned between selected elements.
ACOUSTIC LIGHTING SYSTEMS

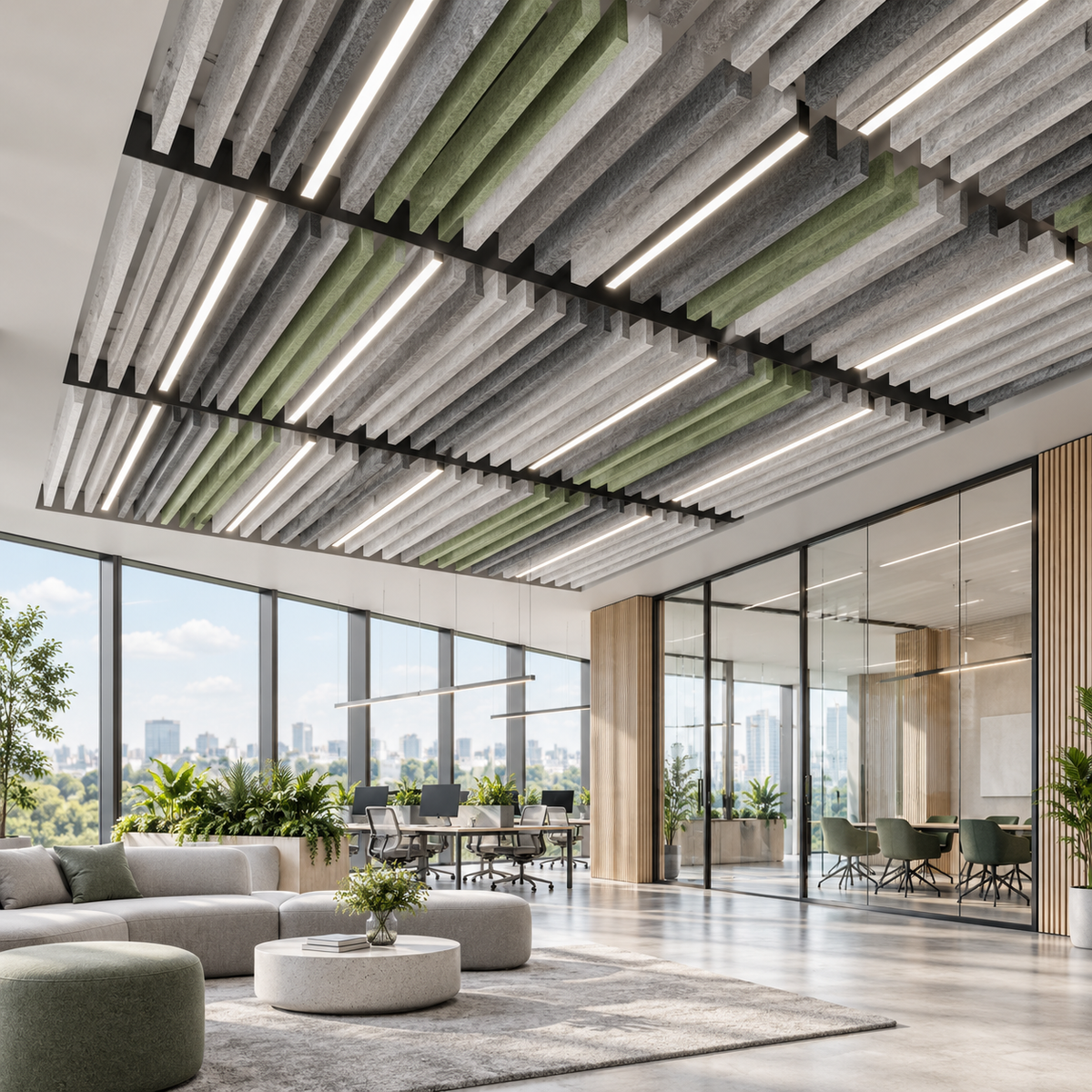

Acoustic ceiling systems with integrated lighting
Mulcheva supplies suspended acoustic ceiling systems that combine PET felt baffles with integrated linear LED lighting. The systems are designed for professional interiors where acoustic comfort, architectural structure and functional lighting need to work together within one ceiling solution.
Acoustic Baffles • Integrated LED Lighting • Modular Systems • Custom Layouts • Project Colours • B2B Supply
ACOUSTIC LIGHTING CONFIGURATIONS
Flexible ceiling systems combining acoustics and linear light
Acoustic lighting systems can be configured with different baffle arrangements, heights, module widths and lighting positions. Standard systems can be used as designed or adapted into modular project-specific compositions.
Duo Baffle Systems
Paired acoustic baffles create a stronger visual rhythm while allowing lighting to be integrated between the repeated felt elements.
Dense Acoustic Configurations
Higher-density baffle layouts provide a more continuous ceiling appearance for larger meeting rooms, offices and commercial interiors.
Slim Baffle Systems
Narrower vertical felt elements create a lighter architectural composition while retaining the ability to integrate linear lighting.

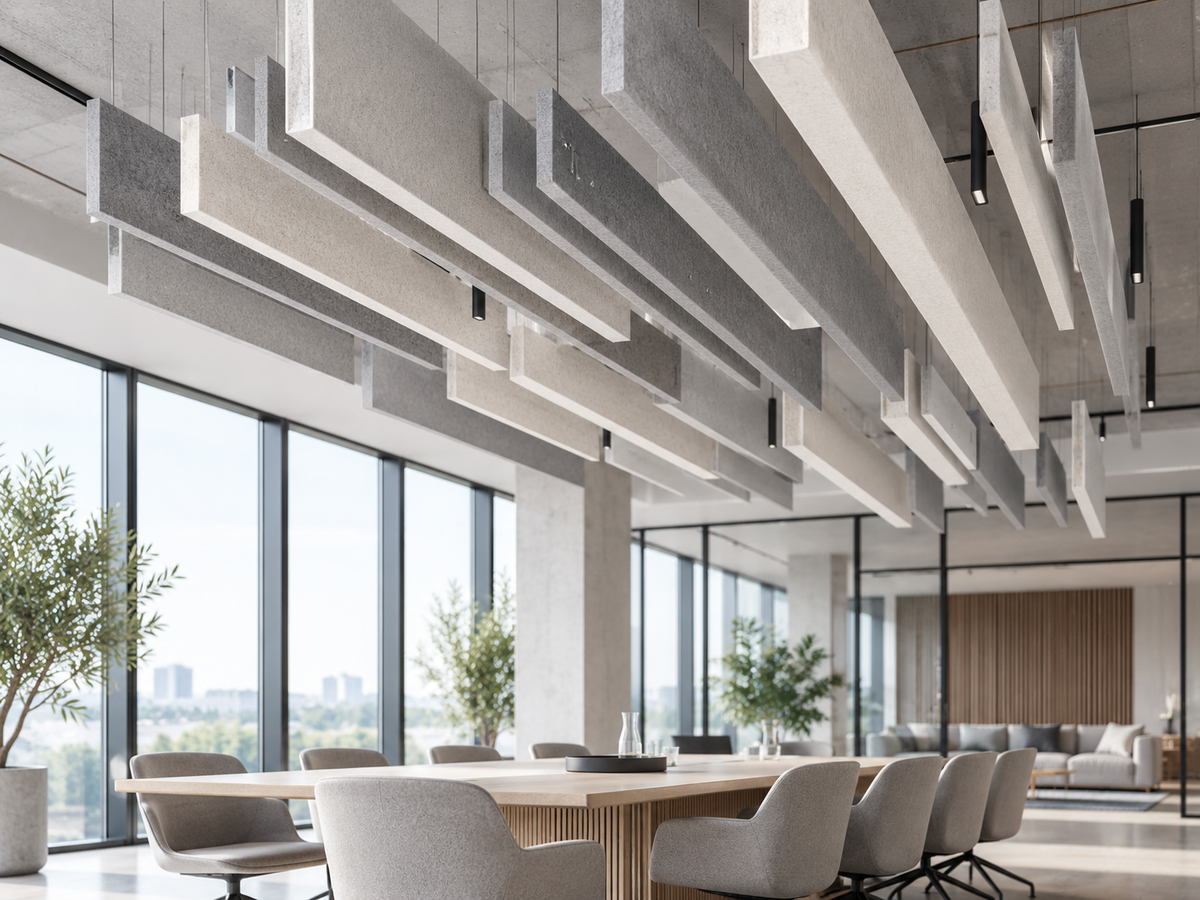

Mixed-height Compositions
Different baffle heights can be combined within selected modular systems to create additional depth, rhythm and project-specific visual effects.
Custom Modular Systems
Baffle height, width, colour, length and LED positioning can be combined into project-specific ceiling compositions around the requirements of the interior.
Available configurations, baffle dimensions, lighting positions and module layouts depend on the selected system and project specification.
MATERIALS, COLOURS & LIGHTING DESIGN
Coordinate acoustics, colour and light within one ceiling system
The acoustic ceiling composition can be developed through PET felt colours, different baffle dimensions, lighting positions and structural finishes. This allows the ceiling to become a coordinated part of the wider interior concept.

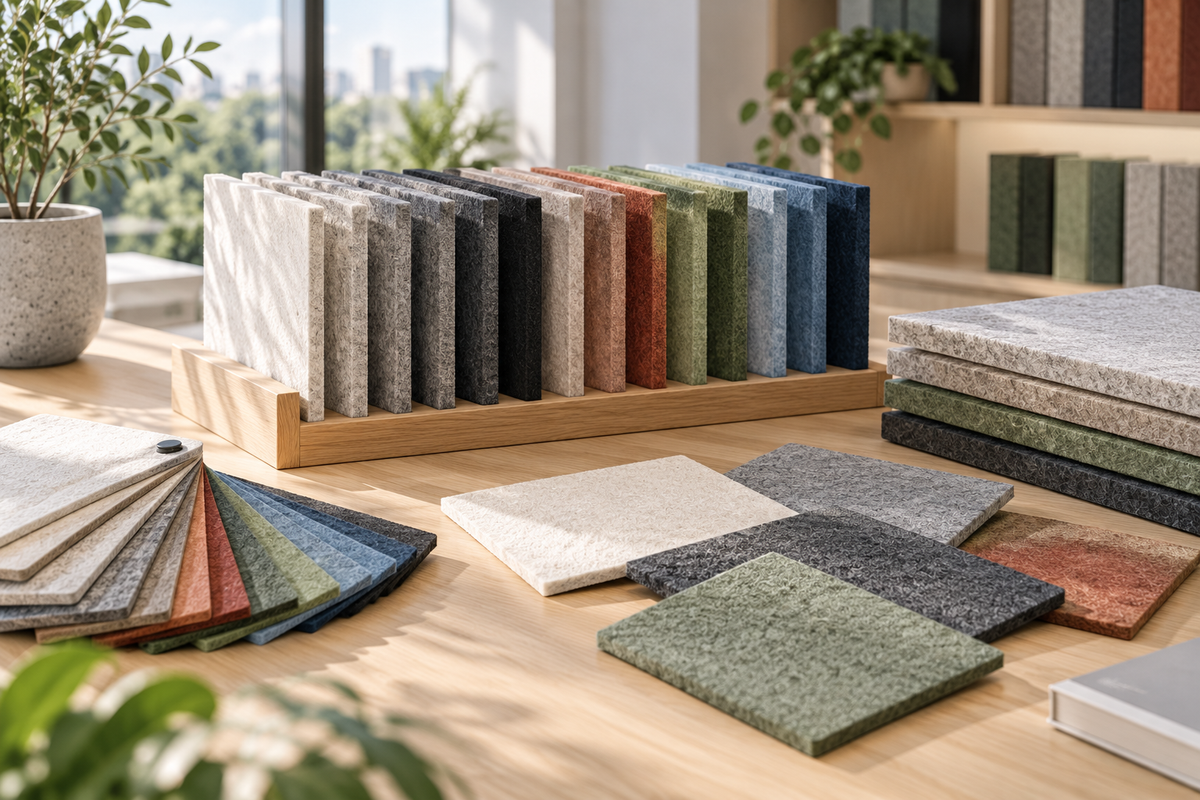

PET Felt Colours
The acoustic felt is available in a broad palette of standard and project colours, ranging from neutral tones to stronger accent colours.
Neutral colours • Natural tones • Accent colours • Project combinations
View Acoustic Colours
Baffle Heights & Forms
Depending on the selected system, baffles are available in different heights, widths and constructions, allowing the visual depth and rhythm of the ceiling to be adapted to the project.
Multiple heights • Different widths • Linear forms • Modular combinations

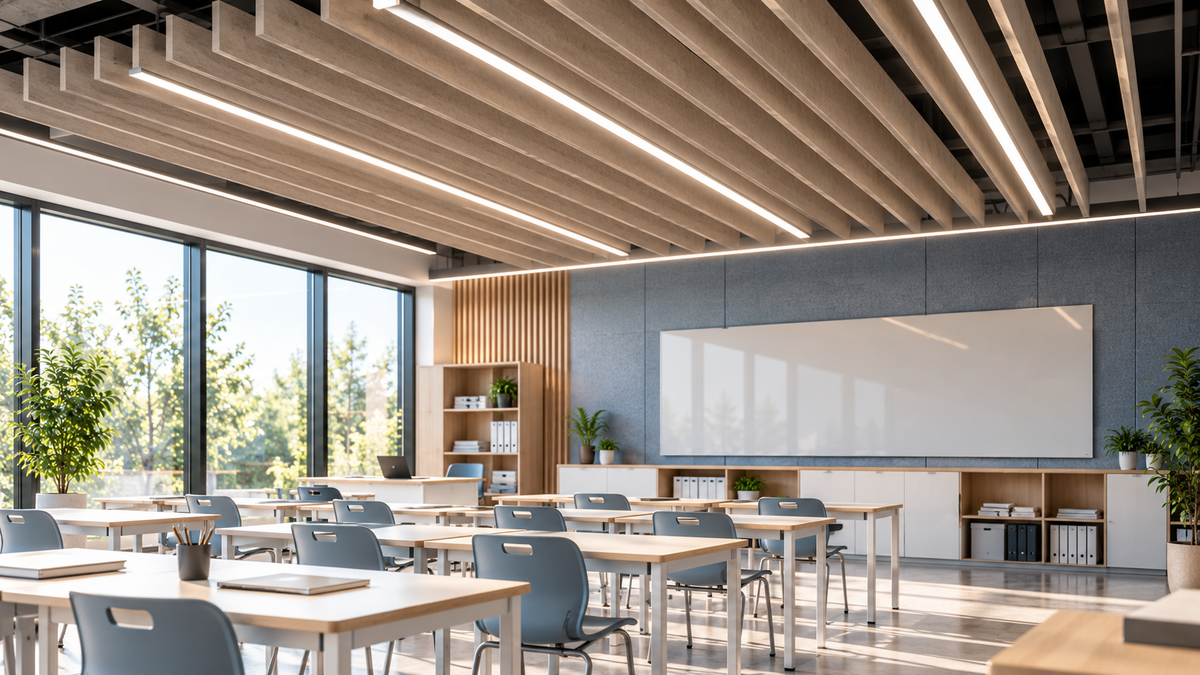

Integrated Linear LED
Linear LED luminaires can be positioned between selected baffles, allowing the lighting layout to be coordinated with the acoustic ceiling composition.
Integrated LEDs • Flexible positioning • 3000 K • 4000 K • 5000 K

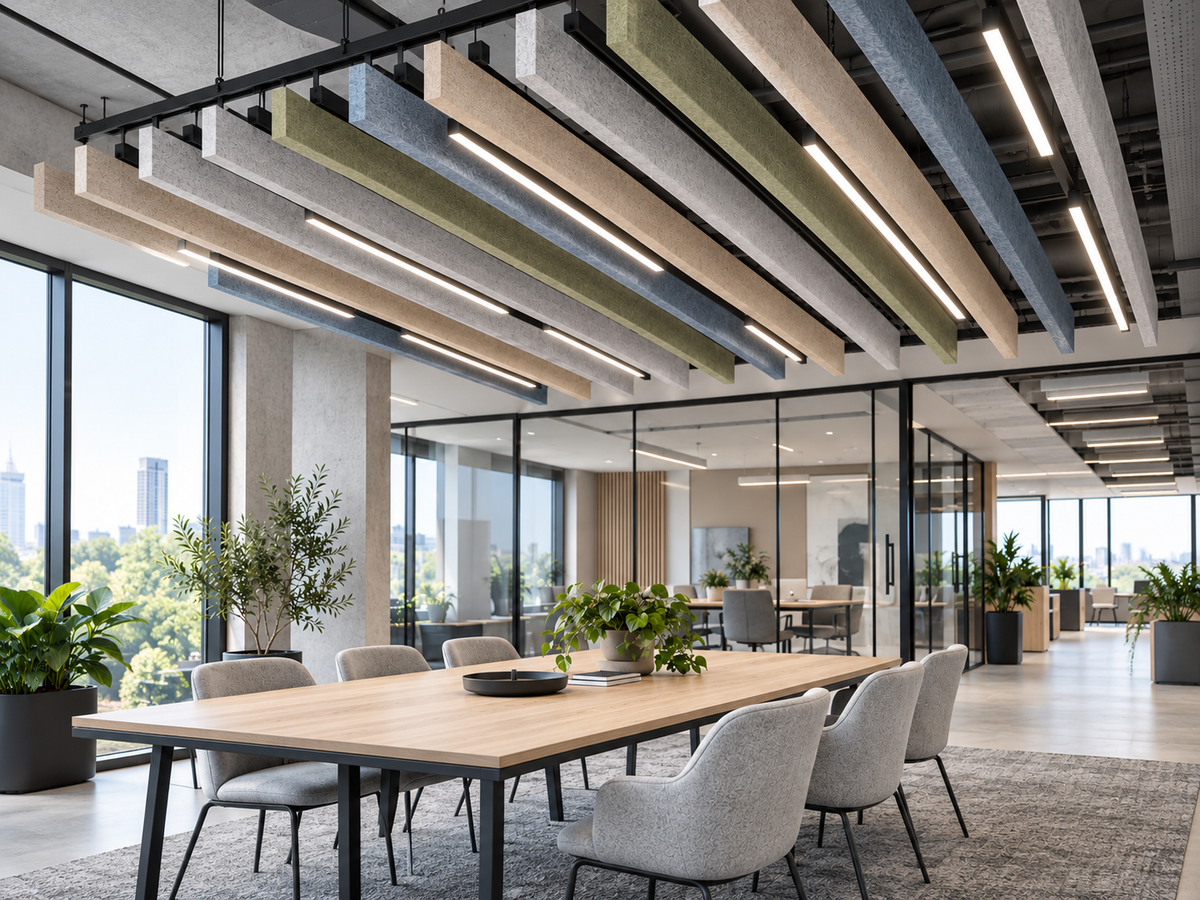

Profiles & Project Finishes
Mounting profiles and luminaires are supplied in black as standard. Other RAL colours can be evaluated and individually specified for project applications.
Black standard • RAL colours on request • Coordinated profiles • Project finishes
PROFESSIONAL APPLICATIONS
Acoustic lighting for professional spaces
Integrated acoustic lighting systems are suited to interiors where acoustics, functional illumination and architectural design need to work together.
Offices & Workspaces
Create structured ceiling zones above workstations and shared spaces while combining sound absorption with functional lighting.
Meeting & Conference Rooms
Combine acoustic comfort, illumination and architectural ceiling design within meeting and collaboration spaces.
Hospitality & Reception Areas
Hotels, restaurants and reception spaces can use acoustic lighting as both a functional solution and a distinctive design feature.
Education & Public Interiors
Education, training and public environments can combine acoustic treatment and lighting within one suspended ceiling system.
Room dimensions • Ceiling height • Lighting requirements • Acoustic needs • Installation conditions
TECHNICAL & PROJECT OPTIONS
A modular system engineered around acoustics and light
Module dimensions, PET felt, lighting, suspension and visual configuration can be specified around the requirements of the project.
Acoustic PET Material
Depending on the selected acoustic system, PET felt is available in different material thicknesses and constructions. LinearScape ceiling systems typically use approximately 9 mm PET felt, while selected acoustic panel ranges are also available in 12 mm material. Exact material specification depends on the selected product and project requirements.
Documented Acoustic Performance
Acoustic performance depends on the selected material and product configuration. The 9 mm PET material used in selected LinearScape systems has a documented sound absorption value of αW = 0.25 according to PN-EN ISO 11654 for the unassembled product. Additional acoustic specifications are available for other product ranges.
Professional LED Lighting
Linear LED luminaires are available in approximately 1130 mm and 1690 mm lengths. Standard colour temperature is 4000 K; 3000 K and 5000 K are available on request. Documented LED lifetime exceeds 72,000 hours.
Modular Dimensions
Standard modules are approximately 2100 mm long and available in widths of 1200 mm or 2400 mm. Modules can be connected to create larger ceiling compositions.
Flexible Installation
Systems can be fixed directly to the ceiling or suspended using dedicated suspension elements or threaded rods, depending on the project.
Custom Configuration
Baffle height, width, colour, length and positioning can be varied, while LED luminaires can be positioned between selected baffles.
Exact acoustic, lighting, dimensional, fire and installation specifications depend on the selected system and project configuration.
DISCUSS YOUR ACOUSTIC LIGHTING PROJECT
Combine acoustic comfort and lighting within one ceiling design
Tell us the room dimensions, ceiling height, lighting requirements, preferred colours and acoustic objectives. Mulcheva can help configure the right baffle system, LED layout and ceiling composition.
PET acoustic baffles • Integrated LED lighting • Custom layouts • Project colours • Modular systems • B2B supply
